Lawn Mower

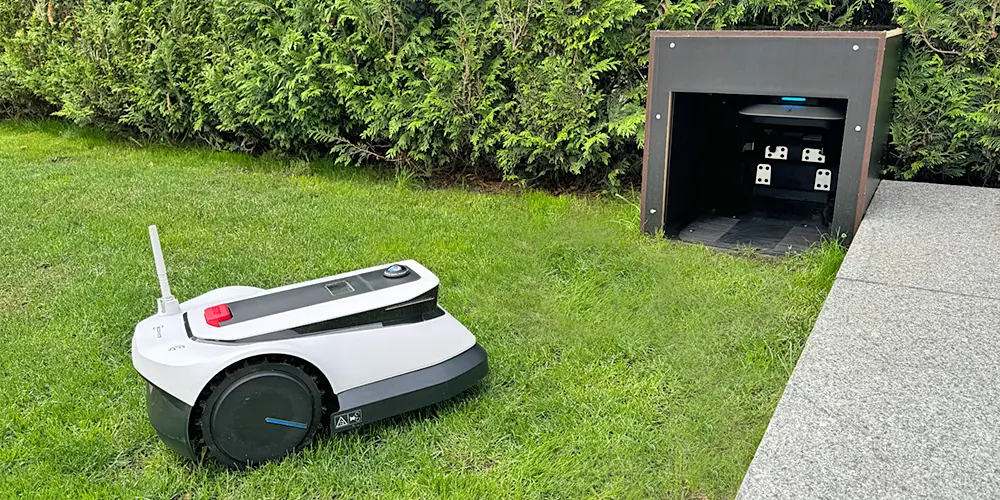

Ecovacs Goat G1After having a Robomow RS615 for years, there were recently problems with the detection of the boundary wire. The hedge was also growing towards the lawn, causing a nuisance over the course of the year. The new robotic lawn mower was therefore purchased. It provides guidance with cameras and battery-powered beacons. Due to the high hedge and several trees, a robotic lawnmower with RTK was ruled out. The garage described below was built so that the little robot doesn't have to stand in the rain.

Garage

Dimensions & arrangement of the panels Measuring the cut-out Cutting out the cutout Drill holes in blind guide rails Fastening left side panel to front panel Fastening the blind guide rails Fixed blind from inside Blind control via Sonoff Dual WiFi module Finished garage

Material

Quantity Description Remark Price
2 15mm Screen printing plates 65 x 62 cm Front & rear wall 60 €
4 15mm Screen printing plates 65 x 90 cm Sides, floor & Ceiling 170 €
100 Spax 4 x 45 mm stainless steel Connecting Screen printing plates 15 €
4 M6 x 50 mm stainless steel Mounting printing plates 5 €
2 M6 x 25 mm stainless steel Mounting Shutter housing 2 €
1 Roller shutter Premium 610x650 with motor Jarolift SL Jalousiescout 130 €
1 Sonoff Dual R2 Blinds control 15 €
1 Spelsberg Junction box Abox 060-L 110 x 110 x 67 mm 10 €
407 €

Steuerung

Sonoff DualThe blinds are controlled using a >Sonoff Dual Wi-Fi Module. It has two relays that can be used to open and close the blinds. This can be time-controlled, offering the function of a normal blind timer. You can also use the Android or iOS app to operate the blind in the WLAN or query its status. Control in the browser or smart home is possible via Home Assist integration.

The alternative firmware >ESPurna offers more functions like MQTT or web interface.

Reset

Goat ResetIf the Goat only shows Ecovacs on the display and no longer responds, you can reset it by pressing the OK, Play & Home buttons simultaneously for several seconds. A sound signal is emitted to confirm.

Pros & Cons

+ No perimeter wire necessary
+ Works very silently
+ Mows structured and therefore fast
+ AI object recognition
+ GSM-Module optional
o Wi-Fi 4 only on 2.4 GHz
o Bluetooth
o UWB navigation beacons necessary
- Very poor camera quality
- Unmown edge strip remains
- App often doesn't update automatically
- Adding additional UWB navigation beacon requires remapping
- No connection to smart home systems like MQTT or Matter

Recommended

>Ecovacs Goat G1 Homepage



>Sonoff Dual Wi-Fi Module



>Spelsberg Abox 060-L



>Roboter-Forum
